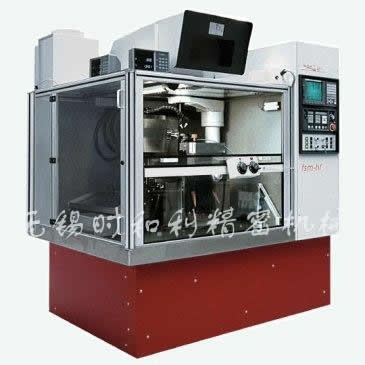

| CNC-controlled Profile Grinding Center FSM 150 |
|
 |
| PART |
ITEM |
SPECIFICATION |
| Projection |
Field of view |
300 x 200 mm |
| |
Magnifcation |
10x, 20x, 50x |
| Illumination |
Halogen, Cold light source |
12 V, 100 W |
| Collant Unit |
Tank capacity |
80 L |
| Grinding Head |
Rotational CNC axis, horizontal |
Z ±30° |
| Inclination (manual) |
α -15° |
| Grinding Stoke |
Length, steplessly variable |
W2 0-78 mm |
| Speed, steplessly variable |
0-280 strokes/min. |
| Grinding Spindle |
Spindle motor |
1 hp;(option:1.5 hp) |
| Spindle speed |
max. 4'000 rpm |
| Grinding wheel diameter |
max. 150 mm |
| Bore diameter |
46 H6 |
| Travel Range |
Profile width, CNC-axis |
X 120 mm |
| Profile depth, CNC-axis |
Y 50 mm |
| Resolution |
Linear axis |
0.0001 mm |
| Rotational axis |
0.001° |
| WOrking Table |
Table size |
500 x 290 mm |
| Height adjustment |
W1 80 mm |
| Travel in X-direction |
U1 95 mm |
| Travel in Y-direction |
V1 50 mm |
| Work Range: |
|
|
| Flat Forms |
Max. profile height |
70 mm |
| Max. workpiece height |
160 mm |
| Round Forms |
Max. workpiece diameter |
200 mm |
| Machine Dimensions |
W x D x H (cm) |
180 x 170 x 190 |
| Weight |
2500 kg |
 |
- FSM150 is the solution to your precision profile/form grinding requirements 。
- A wide range of standard accessories and tooling systems can be customized to suit your needs 。
|
